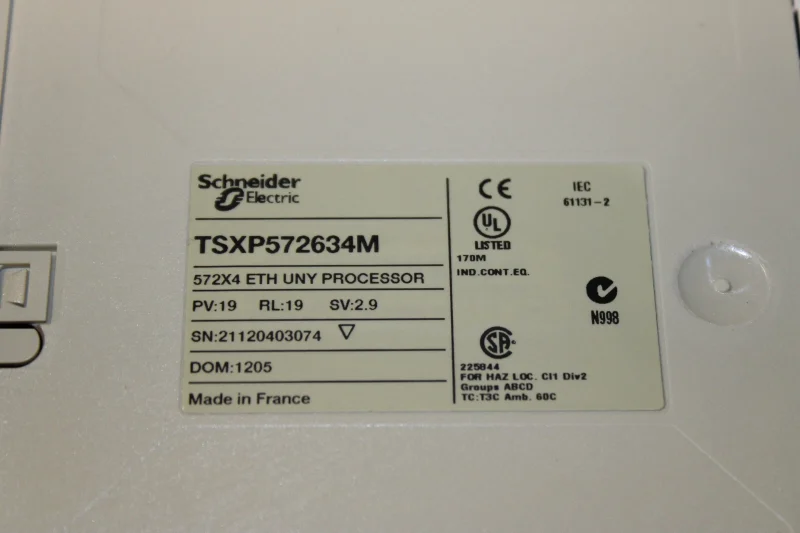

Mô-đun PLC Schneider TSXP572634M

-23%

- Mã sản phẩm: TSXP572634M
- Tình trạng: Đang cập nhật
- Chế độ bảo hành: nhà sản xuất
- Xuất hoá đơn GTGT.
- Mua nhiều giảm giá

⇒Lưu ý: Thông tin trong bài đăng có thể đã lỗi thời không còn chính xác, chỉ mang tính chất tham khảo. Quý khách hàng vui lòng liên hệ trực tiếp để nhận thông tin mới nhất và báo giá sản phẩm đang cần mua

Contact: 0918 509 369

info.flatworld@gmail.com

Liên hệ

Mua tại shopee

Thông tin chi tiết

Mô-đun PLC Schneider TSXP572634M

Một số model sản phẩm khác :

TSXP573623AM,

TSXP573634M,

TSXP57354M,

TSXP574634M,

TSXP57353AM,

TSXP57304M,

TSXP57303AM,

TSXP57454M

Thông số kỹ thuật:

Main
Range of product	Modicon Premium Automation platform
Product or component type	Unity processor
Software designation	Unity Pro

Complementary
Concept	Transparent Ready
Number of racks	16 4/6/8 slots 8 12 slots
Number of slots	128 96 64
Discrete I/O processor capacity	1024 I/O
Analogue I/O processor capacity	80 I/O
Number of application specific channel	24
Number of process control channel	10 up to 30 simple loops
Integrated connection type	Non isolated serial link 2 female mini DIN connector (RS485) (19.2 kbit/s) Ethernet TCP/IP RJ45 connector
Port Ethernet	10BASE-T/100BASE-TX
Communication module processor capacity	4 1
Memory description	IInternal RAM: 768 kB program, 160 kB data (with PCMCIA); 160 kB program + data (without PCMCIA). PCMCIA card: 16,384 kB additional storage

Application structure	64 event tasks 1 master task 1 fast task
Execution time per instruction	0.19 µs Boolean without PCMCIA card 0.25 µs word or fixed-point arithmetic without PCMCIA card 1.75…2.6 µs floating points with PCMCIA card 1.75…2.6 µs floating points without PCMCIA card 0.21 µs Boolean with PCMCIA card 0.42 µs word or fixed-point arithmetic with PCMCIA card
Number of instructions per ms	2.53 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card 3.7 Kinst/ms 100 % Boolean with PCMCIA card 3.71 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card 4.76 Kinst/ms 100 % Boolean without PCMCIA card
System overhead	0.3 ms for fast task 1 ms for master task
Marking	CE
Local signalling	1 LED (green) for Ethernet TCP/IP port ready (RUN) 1 LED (green) for processor running (RUN) 1 LED (red) for collision detection (COL) 1 LED (red) for Ethernet TCP/IP port fault (ERR) 1 LED (red) for I/O module or configuration fault (I/O) 1 LED (red) for processor or system fault (ERR) 1 LED (yellow) for activity on TER or AUX terminal port (TER) 1 LED (yellow) for Ethernet link diagnostics (STS) 1 LED (yellow) for reception activity (RX) 1 LED (yellow) for transmission activity (TX)
Current consumption	1650 mA at 5 V DC
Module format	Double
Net weight	0.042 kg
